详细说明：
CE双护套屏蔽电缆，CE电线电缆 H05VV5-F H05VVC4V5-K
CE电线电缆适用于干燥或潮湿的室内，无强应力缓释或强制引导的偶尔运动下的安装，以及工业使用环境下的偶尔弯曲移动场合，如机床、木工、磨床等。
CE电线电缆 H05VV5-F H05VVC4V5-K

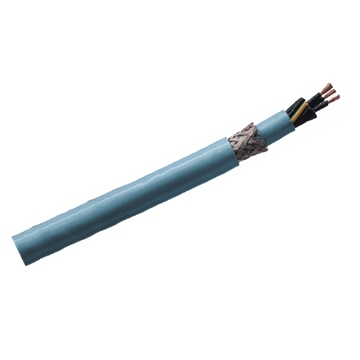

CE电线电缆H05VVC4V5-K结构
导 体：多股精绞无氧铜丝，符合VDE0295 CLASS 5标准
绝 缘：柔性PVC绝缘
颜 色：≤0.5mm：棕、黑、蓝、紫、粉红、橙;
≥0.5mm：黑色芯线白色数字编号，3芯以上带有黄绿接地线（黄绿可选）
缆 芯：多股芯线绞合成缆
屏 蔽：裸铜丝或镀锡铜丝编织屏蔽（可选）
护 套：耐油柔性PVC护套，灰色(RAL7001)，黑色(RAL9005)
额定电压：300/500V
使用温度：固定安装： -40℃ to +70℃
移动安装： -5℃ to +70℃
最小弯曲半径：固定安装：4*D
移动安装：15*D
CE电线电缆 H05VV5-F H05VVC4V5-K
| 型号 | 规格 | 导体根数 | 单根导体直径φ | 近似密度公斤/KM |
标称外径 /下限mm |
外径上限mm | ||||||||
| H05VVC4V5-K | 0.5*3C | 28 | 0.15 | 125.7 | 8.4 | 9.0 | ||||||||
| H05VVC4V5-K | 0.5*4C | 28 | 0.15 | 144.6 | 9.1 | 9.7 | ||||||||
| H05VVC4V5-K | 0.5*5C | 28 | 0.15 | 166.5 | 9.8 | 10.4 | ||||||||
| H05VVC4V5-K | 0.5*6C | 28 | 0.15 | 185.7 | 10.5 | 11.1 | ||||||||
| H05VVC4V5-K | 0.5*7C | 28 | 0.15 | 212.8 | 11.3 | 11.9 | ||||||||
| H05VVC4V5-K | 0.5*8C | 28 | 0.15 | 242.8 | 12.5 | 13.1 | ||||||||
| H05VVC4V5-K | 0.5*9C | 28 | 0.15 | 254.9 | 12.5 | 13.1 | ||||||||
| H05VVC4V5-K | 0.5*10C | 28 | 0.15 | 290.5 | 13.4 | 14 | ||||||||
| H05VVC4V5-K | 0.5*11C | 28 | 0.15 | 311.3 | 13.8 | 14.4 | ||||||||
| H05VVC4V5-K | 0.5*12C | 28 | 0.15 | 318.0 | 13.8 | 14.4 | ||||||||
| H05VVC4V5-K | 0.5*13C | 28 | 0.15 | 346.0 | 14.5 | 15.1 | ||||||||
| H05VVC4V5-K | 0.5*14C | 28 | 0.15 | 352.5 | 14.5 | 15.1 | ||||||||
| H05VVC4V5-K | 0.5*15C | 28 | 0.15 | 383.4 | 15.4 | 16.2 | ||||||||
| H05VVC4V5-K | 0.5*16C | 28 | 0.15 | 390.1 | 15.2 | 16.2 | ||||||||
| H05VVC4V5-K | 0.5*17C | 28 | 0.15 | 422.7 | 16.0 | 17 | ||||||||
| H05VVC4V5-K | 0.5*18C | 28 | 0.15 | 429.4 | 16.0 | 17 | ||||||||
| H05VVC4V5-K | 0.5*19C | 28 | 0.15 | 439.5 | 16.0 | 17 | ||||||||
| H05VVC4V5-K | 0.5*20C | 28 | 0.15 | 494.9 | 18.1 | 19.1 | ||||||||
| H05VVC4V5-K | 0.5*21C | 28 | 0.15 | 507.2 | 18.1 | 19.1 | ||||||||
| H05VVC4V5-K | 0.5*22C | 28 | 0.15 | 532.4 | 18.1 | 19.1 | ||||||||
| H05VVC4V5-K | 0.5*23C | 28 | 0.15 | 558.1 | 18.9 | 19.9 | ||||||||
| H05VVC4V5-K | 0.5*24C | 28 | 0.15 | 563.9 | 18.9 | 19.9 | ||||||||
| H05VVC4V5-K | 0.5*25C | 28 | 0.15 | 587.5 | 19.4 | 20.4 | ||||||||
| H05VVC4V5-K | 0.5*26C | 28 | 0.15 | 597.6 | 19.4 | 20.4 | ||||||||
| H05VVC4V5-K | 0.5*27C | 28 | 0.15 | 604.4 | 19.4 | 20.4 | ||||||||
| H05VVC4V5-K | 0.5*28C | 28 | 0.15 | 643.3 | 20.1 | 21.5 | ||||||||
| H05VVC4V5-K | 0.5*29C | 28 | 0.15 | 650.2 | 20.1 | 21.5 | ||||||||
| H05VVC4V5-K | 0.5*30C | 28 | 0.15 | 660.3 | 20.1 | 21.5 | ||||||||
| H05VVC4V5-K | 0.5*31C | 28 | 0.15 | 696.5 | 20.9 | 22.3 | ||||||||
| H05VVC4V5-K | 0.5*32C | 28 | 0.15 | 706.6 | 20.9 | 22.3 | ||||||||
| H05VVC4V5-K | 0.5*33C | 28 | 0.15 | 713.6 | 20.9 | 22.3 | ||||||||
| H05VVC4V5-K | 0.5*34C | 28 | 0.15 | 751.8 | 21.8 | 23.2 | ||||||||
| H05VVC4V5-K | 0.5*35C | 28 | 0.15 | 762.0 | 21.8 | 23.2 | ||||||||
| H05VVC4V5-K | 0.5*36C | 28 | 0.15 | 768.9 | 21.8 | 23.2 | ||||||||
| H05VVC4V5-K | 0.5*37C | 28 | 0.15 | 779.0 | 21.8 | 23.2 | ||||||||
| H05VVC4V5-K | 0.75*2C | 24 | 0.2 | 127.1 | 8.5 | 9 | ||||||||
| H05VVC4V5-K | 0.75*3C | 24 | 0.2 | 144.2 | 8.9 | 9.4 | ||||||||
| H05VVC4V5-K | 0.75*4C | 24 | 0.2 | 168.2 | 9.7 | 10.2 | ||||||||
| H05VVC4V5-K | 0.75*5C | 24 | 0.2 | 192.1 | 10.4 | 11 | ||||||||
| H05VVC4V5-K | 0.75*6C | 24 | 0.2 | 220.9 | 11.3 | 11.9 | ||||||||
| H05VVC4V5-K | 0.75*7C | 24 | 0.2 | 252.2 | 12.3 | 12.9 | ||||||||
| H05VVC4V5-K | 0.75*8C | 24 | 0.2 | 288.7 | 13.5 | 14.1 | ||||||||
| H05VVC4V5-K | 0.75*9C | 24 | 0.2 | 304.4 | 13.5 | 14.1 | ||||||||
| H05VVC4V5-K | 0.75*10C | 24 | 0.2 | 347.0 | 14.5 | 15.1 | ||||||||
| H05VVC4V5-K | 0.75*11C | 24 | 0.2 | 372.8 | 14.8 | 15.6 | ||||||||
| H05VVC4V5-K | 0.75*12C | 24 | 0.2 | 381.8 | 14.8 | 15.6 | ||||||||
| H05VVC4V5-K | 0.75*13C | 24 | 0.2 | 416.2 | 15.6 | 16.6 | ||||||||
| H05VVC4V5-K | 0.75*14C | 24 | 0.2 | 425.1 | 15.6 | 16.6 | ||||||||
| H05VVC4V5-K | 0.75*15C | 24 | 0.2 | 462.8 | 16.5 | 17.5 | ||||||||
| H05VVC4V5-K | 0.75*16C | 24 | 0.2 | 471.8 | 16.5 | 17.5 | ||||||||
| H05VVC4V5-K | 0.75*17C | 24 | 0.2 | 511.7 | 17.4 | 18.4 | ||||||||
| H05VVC4V5-K | 0.75*18C | 24 | 0.2 | 520.7 | 17.4 | 18.4 | ||||||||
