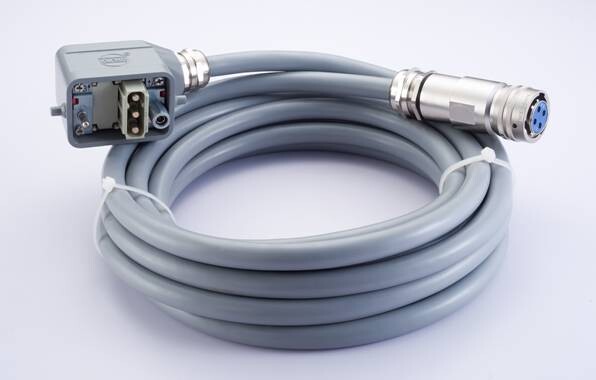

机器人数据电缆

作者： admin来源：本站时间：2018-06-11

电缆结构
导体：0.5mm²-0.75mm²:裸铜多股线,裸铜多股线符合
IEC60228+EN60228,VDE0295,6级
绝缘：ETFE氟素树脂
颜色：0.5mm²-0.75mm²:符合颜色代码
带有连续编号的黑色芯线符合EN50334,
芯线结构：每层均经过特殊处理,并包有无纺带
护套：高温耐油性特制PV符合DIN DE0281+HD21.1
额定电压：0.5mm²-0.75mm²:U0/U 300/300V
峰值电压：00.5mm²-0.75mm²:U 3000V
测试电压：0.5mm²-0.75mm²:1500V符合DIN VDE0472
抗辐射强度：5×10^7cJ/kg
扭转角度：达±270℃/0.5m
使用温度范围：UL(0.10mm²-0.75mm²)DIN VDE

规格	导体规格 (根数/直径)		近似密度公斤/KM	标称外径/下限mm	外径上限mm
0.14*2C	28/0.08CU+2/0.1steel		25.9	4.4	4.8
0.14*3C	28/0.08CU+2/0.1steel		31.3	4.6	5.0
0.14*4C	28/0.08CU+2/0.1steel		38.2	5.0	5.4
0.14*5C	28/0.08CU+2/0.1steel		44.8	5.4	5.8
0.14*6C	28/0.08CU+2/0.1steel		51.7	5.8	6.2
0.14*7C	28/0.08CU+2/0.1steel		58.6	6.2	6.6
0.14*8C	28/0.08CU+2/0.1steel		66.7	6.7	7.1
0.14*9C	28/0.08CU+2/0.1steel		73.9	7.1	7.5
0.14*10C	28/0.08CU+2/0.1steel		80.8	7.4	7.8
0.14*11C	28/0.08CU+2/0.1steel		92.3	8.3	8.7
0.14*12C	28/0.08CU+2/0.1steel		96.6	8.3	8.7
0.14*13C	28/0.08CU+2/0.1steel		100.8	8.3	8.7
0.14*14C	28/0.08CU+2/0.1steel		111.8	9.0	9.8
0.14*15C	28/0.08CU+2/0.1steel		116	9.0	9.8
0.14*16C	28/0.08CU+2/0.1steel		120.4	9.0	9.8
0.14*17C	28/0.08CU+2/0.1steel		132	9.8	10.6
0.14*18C	28/0.08CU+2/0.1steel		136.2	9.8	10.6
0.14*19C	28/0.08CU+2/0.1steel		140.5	9.8	10.6
0.14*20C	28/0.08CU+2/0.1steel		145.4	9.9	10.7
0.14*21C	28/0.08CU+2/0.1steel		149.6	9.9	10.7
0.14*22C	28/0.08CU+2/0.1steel		153.8	9.9	10.7
0.14*23C	28/0.08CU+2/0.1steel		167	10.7	11.7
0.14*24C	28/0.08CU+2/0.1steel		171.3	10.7	11.7

0.2*5C	40/0.08CU+2/0.1steel		49.91	5.7	6.2
0.2*6C	40/0.08CU+2/0.1steel		57.73	6.1	6.6
0.2*7C	40/0.08CU+2/0.1steel		65.66	6.5	7.0
0.2*8C	40/0.08CU+2/0.1steel		74.77	7.1	7.6
0.2*9C	40/0.08CU+2/0.1steel		82.98	7.5	8.0
0.2*10C	40/0.08CU+2/0.1steel		90.86	7.9	8.4
0.2*11C	40/0.08CU+2/0.1steel		103.83	8.8	9.6
0.2*12C	40/0.08CU+2/0.1steel		108.81	8.8	9.6
0.2*13C	40/0.08CU+2/0.1steel		113.79	8.8	9.6
0.2*14C	40/0.08CU+2/0.1steel		126.14	9.6	10.5
0.2*15C	40/0.08CU+2/0.1steel		131.12	9.6	10.5
0.2*16C	40/0.08CU+2/0.1steel		136.25	9.7	10.5
0.2*17C	40/0.08CU+2/0.1steel		149.29	10.5	11.4
0.2*18C	40/0.08CU+2/0.1steel		154.27	10.5	11.4
0.2*19C	40/0.08CU+2/0.1steel		159.26	10.5	11.4
0.2*20C	40/0.08CU+2/0.1steel		164.97	10.6	11.5
0.2*21C	40/0.08CU+2/0.1steel		169.95	10.6	11.5
0.2*22C	40/0.08CU+2/0.1steel		174.94	10.6	11.5
0.2*23C	40/0.08CU+2/0.1steel		189.75	11.5	12.5
0.2*24C	40/0.08CU+2/0.1steel		194.73	11.5	12.5

0.25*2C	50	0.08	29.73	4.9	5.3
0.25*3C	50	0.08	36.47	5.1	5.5
0.25*4C	50	0.08	44.18	5.5	5.9
0.25*5C	50	0.08	52.22	5.9	6.3
0.25*6C	50	0.08	60.5	6.3	6.8
0.25*7C	50	0.08	68.9	6.7	7.2
0.25*8C	50	0.08	78.46	7.3	7.8
0.25*9C	50	0.08	87.14	7.8	8.3
0.25*10C	50	0.08	95.48	8.1	8.7
0.25*11C	50	0.08	108.91	9.1	9.9
0.25*12C	50	0.08	114.35	9.1	9.9
0.25*13C	50	0.08	119.8	9.1	9.9
0.25*14C	50	0.08	132.6	10.0	11.0
0.25*15C	50	0.08	138.05	10.0	11.0
0.25*16C	50	0.08	143.64	10.0	11.0
0.25*17C	50	0.08	157.14	10.9	11.9
0.25*18C	50	0.08	162.59	10.9	11.9
0.25*19C	50	0.08	168.03	10.9	11.9
0.25*20C	50	0.08	174.21	10.9	11.9

0.3*2C	60	0.08	33.13	5.0	5.5
0.3*3C	60	0.08	40.95	5.2	5.7
0.3*4C	60	0.08	49.87	5.6	6.1
0.3*5C	60	0.08	59.16	6.0	6.5
0.3*6C	60	0.08	68.74	6.5	7.0
0.3*7C	60	0.08	78.46	6.9	7.4
0.3*8C	60	0.08	89.51	7.5	8.0
0.3*9C	60	0.08	99.55	8.0	8.6
0.3*10C	60	0.08	109.22	8.4	9.0
0.3*11C	60	0.08	124.72	9.4	10.0
0.3*12C	60	0.08	131.08	9.4	10.0
0.3*13C	60	0.08	137.45	9.4	10.0
0.3*14C	60	0.08	152.26	10.3	11.1
0.3*15C	60	0.08	158.62	10.3	11.1
0.3*16C	60	0.08	167.66	10.3	11.1
0.3*17C	60	0.08	180.79	11.2	12.1
0.3*18C	60	0.08	187.15	11.2	12.1
0.3*19C	60	0.08	193.52	11.2	12.1
0.3*20C	60	0.08	200.72	11.3	12.2

0.34*2C	68	0.08	33.8	5.2	5.5
0.34*3C	68	0.08	42	5.5	5.8
0.34*4C	68	0.08	53.3	6.1	6.4
0.34*5C	68	0.08	60.8	6.4	6.7
0.34*6C	68	0.08	70.8	6.9	7.2
0.34*7C	68	0.08	80.8	7.4	7.7
0.34*8C	68	0.08	92.2	8.0	8.3
0.34*9C	68	0.08	102.6	8.5	8.8
0.34*10C	68	0.08	112.6	9.0	9.3
0.34*11C	68	0.08	128.4	10.1	10.7
0.34*12C	68	0.08	135.1	10.1	10.7
0.34*13C	68	0.08	141.8	10.1	10.7
0.34*14C	68	0.08	157	11.1	11.7
0.34*15C	68	0.08	163.7	11.1	11.7
0.34*16C	68	0.08	173	11.1	11.7
0.34*17C	68	0.08	186.5	12.1	12.7
0.34*18C	68	0.08	193.2	12.1	12.7
0.34*19C	68	0.08	199.9	12.1	12.7
0.34*20C	68	0.08	207.5	12.2	12.8

0.5*2C	64	0.1	42.3	5.8	6.1
0.5*3C	64	0.1	53.5	6.1	6.4
0.5*4C	64	0.1	66.1	6.6	6.9
0.5*5C	64	0.1	79.9	7.3	7.6
0.5*6C	64	0.1	93.5	7.9	8.2
0.5*7C	64	0.1	107.2	8.5	8.8
0.5*8C	64	0.1	122.7	9.3	9.6
0.5*9C	64	0.1	136.9	9.8	10.1
0.5*10C	64	0.1	150.6	10.4	11.0
0.5*11C	64	0.1	172	12.0	12.6
0.5*12C	64	0.1	181.4	12.0	12.6
0.5*13C	64	0.1	190.7	12.0	12.6
0.5*14C	64	0.1	211.3	13.1	13.7
0.5*15C	64	0.1	220.7	13.1	13.7
0.5*16C	64	0.1	230.3	13.2	13.8
0.5*17C	64	0.1	252	14.4	15.0
0.5*18C	64	0.1	261.4	14.4	15.0
0.5*19C	64	0.1	270.7	14.4	15.0
0.5*20C	64	0.1	281.2	14.5	15.1
0.5*21C	64	0.1	290.6	14.5	15.1
0.5*22C	64	0.1	300	14.5	15.1
0.5*23C	64	0.1	324.5	15.8	16.8
0.5*24C	64	0.1	333.9	15.8	16.8

0.75*2C	96	0.1	52	6.4	6.7
0.75*3C	96	0.1	66.7	6.7	7.0
0.75*4C	96	0.1	82.9	7.3	7.6
0.75*5C	96	0.1	99.8	7.9	8.2
0.75*6C	96	0.1	117.2	8.6	8.9
0.75*7C	96	0.1	134.8	9.2	9.5
0.75*8C	96	0.1	154.5	10.1	10.7
0.75*9C	96	0.1	172.7	10.8	11.4
0.75*10C	96	0.1	190.4	11.3	11.9
0.75*11C	96	0.1	217.3	13.1	13.7
0.75*12C	96	0.1	229.7	13.1	13.7
0.75*13C	96	0.1	242.2	13.1	13.7
0.75*14C	96	0.1	268.1	14.4	15.0
0.75*15C	96	0.1	280.6	14.4	15.0
0.75*16C	96	0.1	293.3	14.5	15.1
0.75*17C	96	0.1	320.6	15.8	16.8
0.75*18C	96	0.1	333.1	15.8	16.8
0.75*19C	96	0.1	345.6	15.8	16.8
0.75*20C	96	0.1	359.4	15.9	16.9
0.75*21C	96	0.1	371.8	15.9	16.9
0.75*22C	96	0.1	384.3	15.9	16.9
0.75*23C	96	0.1	415.1	17.4	18.4
0.75*24C	96	0.1	427.6	17.4	18.4
0.75*25C	96	0.1	440	17.4	18.4

1.0*2C	126	0.1	61.8	6.8	7.1
1.0*3C	126	0.1	80.1	7.2	7.5
1.0*4C	126	0.1	100.4	7.8	8.1
1.0*5C	126	0.1	121.4	8.5	8.8
1.0*6C	126	0.1	142.9	9.3	9.6
1.0*7C	126	0.1	164.8	10.0	10.6
1.0*8C	126	0.1	189.1	11.0	11.6
1.0*9C	126	0.1	211.7	11.7	12.3
1.0*10C	126	0.1	233.6	12.3	12.9
1.0*11C	126	0.1	266.4	14.0	14.6
1.0*12C	126	0.1	282.2	14.0	14.6
1.0*13C	126	0.1	298.1	14.0	14.6
1.0*14C	126	0.1	329.8	15.4	16.4
1.0*15C	126	0.1	345.6	15.4	16.4
1.0*16C	126	0.1	361.8	15.4	16.4
1.0*17C	126	0.1	395.2	16.9	17.9
1.0*18C	126	0.1	411.1	16.9	17.9
1.0*19C	126	0.1	426.9	16.9	17.9
1.0*20C	126	0.1	444.4	17.0	18.0

1.5*2C	189	0.1	86.6	8.2	8.5
1.5*3C	189	0.1	113.6	8.7	9.0
1.5*4C	189	0.1	143.5	9.5	9.8
1.5*5C	189	0.1	174.4	10.4	11.0
1.5*6C	189	0.1	206.2	11.4	12.0
1.5*7C	189	0.1	238.5	12.3	12.9
1.5*8C	189	0.1	274.5	13.5	14.1
1.5*9C	189	0.1	308	14.5	15.1
1.5*10C	189	0.1	340.6	15.3	15.9
1.5*11C	189	0.1	389.7	17.4	18.0
1.5*12C	189	0.1	413.1	17.4	18.0
1.5*13C	189	0.1	436.5	17.4	18.0
1.5*14C	189	0.1	484.1	19.3	19.9
1.5*15C	189	0.1	507.5	19.3	19.9
1.5*16C	189	0.1	531.4	19.3	19.9
1.5*17C	189	0.1	581.8	21.2	22.2
1.5*18C	189	0.1	605.2	21.2	22.2
1.5*19C	189	0.1	628.6	21.2	22.2
1.5*20C	189	0.1	657.1	21.5	22.5
1.5*21C	189	0.1	680.5	21.5	22.5
1.5*22C	189	0.1	703.8	21.5	22.5
1.5*23C	189	0.1	761	23.7	24.7
1.5*24C	189	0.1	784.4	23.7	24.7

2.5*2C	161	0.14	134.6	10.2	11.0
2.5*3C	161	0.14	182	10.8	11.6
2.5*4C	161	0.14	233.8	11.8	12.8
2.5*5C	161	0.14	287.5	13.1	14.1
2.5*6C	161	0.14	342.7	14.4	15.4
2.5*7C	161	0.14	399	15.7	17.1
2.5*8C	161	0.14	461.6	17.5	18.9
2.5*9C	161	0.14	520.2	18.8	20.2
2.5*10C	161	0.14	577.4	19.9	21.3
2.5*11C	161	0.14	612.9	19.5	20.9
2.5*12C	161	0.14	654.7	19.5	20.9
2.5*13C	161	0.14	712.3	20.6	22.0
2.5*14C	161	0.14	754.2	20.6	22.0
2.5*15C	161	0.14	814.2	21.9	23.3
2.5*16C	161	0.14	856.1	21.9	23.3
2.5*17C	161	0.14	918	23.2	24.6
2.5*18C	161	0.14	959.9	23.2	24.6
2.5*19C	161	0.14	1012.4	23.9	25.3
2.5*20C	161	0.14	1067.5	24.7	26.6
2.5*21C	161	0.14	1139.3	26.5	28.4
2.5*22C	161	0.14	1181.1	26.5	28.4
2.5*23C	161	0.14	1246.6	27.8	29.7
2.5*24C	161	0.14	1288.4	27.8	29.7

4.0*2C	259	0.14	210.1	12.5	13.5
4.0*3C	259	0.14	283.6	13.3	14.3
4.0*4C	259	0.14	364	14.7	16.1
4.0*5C	259	0.14	447.3	16.3	17.7
4.0*6C	259	0.14	533	17.9	19.3

6.0*2C	390	0.14	281.6	14	15.4
6.0*3C	390	0.14	385	14.9	16.3
6.0*4C	390	0.14	496.9	16.5	17.9
6.0*5C	390	0.14	612.6	18.3	19.7
6.0*6C	390	0.14	731.3	20.2	21.6

10.0*2C	353	0.19	433	17.1	18.5
10.0*3C	353	0.19	598.5	18.3	19.7
10.0*4C	353	0.19	776.7	20.3	21.7
10.0*5C	353	0.19	960.4	22.5	23.9

16*2C	564	0.19	614	19.9	21.3
16*3C	564	0.19	856.3	21.3	22.7
16*4C	564	0.19	1115.6	23.7	25.1
16*5C	564	0.19	1385.5	26.5	28.4

25.0*2C	882	0.19	930.5	24.7	26.6
25.0*3C	882	0.19	1303.6	26.5	28.4
25.0*4C	882	0.19	1692	29.3	31.2
