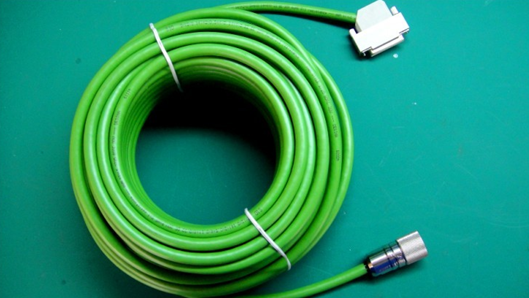

机器人数据电缆及线束

作者： admin来源：本站时间：2018-06-11

电缆结构
导体：0.5mm²-0.75mm²:裸铜多股线,裸铜多股线符合
IEC60228+EN60228,VDE0295,6级
绝缘：ETFE氟素树脂
颜色：0.5mm²-0.75mm²:符合颜色代码
带有连续编号的黑色芯线符合EN50334,
芯线结构：每层均经过特殊处理,并包有无纺带
护套：高温耐油性特制PV符合DIN DE0281+HD21.1
额定电压：0.5mm²-0.75mm²:U0/U 300/300V
峰值电压：00.5mm²-0.75mm²:U 3000V
测试电压：0.5mm²-0.75mm²:1500V符合DIN VDE0472
抗辐射强度：5×10^7cJ/kg
扭转角度：达±270℃/0.5m
使用温度范围：UL(0.10mm²-0.75mm²)DIN VDE

规格	导体规格 (根数/直径)		近似密度公斤/KM	标称外径/下限mm	外径上限mm
0.14*2C	28/0.08CU+2/0.1steel		25.9	4.4	4.8
0.14*3C	28/0.08CU+2/0.1steel		31.3	4.6	5.0
0.14*4C	28/0.08CU+2/0.1steel		38.2	5.0	5.4
0.14*5C	28/0.08CU+2/0.1steel		44.8	5.4	5.8
0.14*6C	28/0.08CU+2/0.1steel		51.7	5.8	6.2
0.14*7C	28/0.08CU+2/0.1steel		58.6	6.2	6.6
0.14*8C	28/0.08CU+2/0.1steel		66.7	6.7	7.1
0.14*9C	28/0.08CU+2/0.1steel		73.9	7.1	7.5
0.14*10C	28/0.08CU+2/0.1steel		80.8	7.4	7.8
0.14*11C	28/0.08CU+2/0.1steel		92.3	8.3	8.7
0.14*12C	28/0.08CU+2/0.1steel		96.6	8.3	8.7
0.14*13C	28/0.08CU+2/0.1steel		100.8	8.3	8.7
0.14*14C	28/0.08CU+2/0.1steel		111.8	9.0	9.8
0.14*15C	28/0.08CU+2/0.1steel		116	9.0	9.8
0.14*16C	28/0.08CU+2/0.1steel		120.4	9.0	9.8
0.14*17C	28/0.08CU+2/0.1steel		132	9.8	10.6
0.14*18C	28/0.08CU+2/0.1steel		136.2	9.8	10.6
0.14*19C	28/0.08CU+2/0.1steel		140.5	9.8	10.6
0.14*20C	28/0.08CU+2/0.1steel		145.4	9.9	10.7
0.14*21C	28/0.08CU+2/0.1steel		149.6	9.9	10.7
0.14*22C	28/0.08CU+2/0.1steel		153.8	9.9	10.7
0.14*23C	28/0.08CU+2/0.1steel		167	10.7	11.7
0.14*24C	28/0.08CU+2/0.1steel		171.3	10.7	11.7

0.2*5C	40/0.08CU+2/0.1steel		49.91	5.7	6.2
0.2*6C	40/0.08CU+2/0.1steel		57.73	6.1	6.6
0.2*7C	40/0.08CU+2/0.1steel		65.66	6.5	7.0
0.2*8C	40/0.08CU+2/0.1steel		74.77	7.1	7.6
0.2*9C	40/0.08CU+2/0.1steel		82.98	7.5	8.0
0.2*10C	40/0.08CU+2/0.1steel		90.86	7.9	8.4
0.2*11C	40/0.08CU+2/0.1steel		103.83	8.8	9.6
0.2*12C	40/0.08CU+2/0.1steel		108.81	8.8	9.6
0.2*13C	40/0.08CU+2/0.1steel		113.79	8.8	9.6
0.2*14C	40/0.08CU+2/0.1steel		126.14	9.6	10.5
0.2*15C	40/0.08CU+2/0.1steel		131.12	9.6	10.5
0.2*16C	40/0.08CU+2/0.1steel		136.25	9.7	10.5
0.2*17C	40/0.08CU+2/0.1steel		149.29	10.5	11.4
0.2*18C	40/0.08CU+2/0.1steel		154.27	10.5	11.4
0.2*19C	40/0.08CU+2/0.1steel		159.26	10.5	11.4
0.2*20C	40/0.08CU+2/0.1steel		164.97	10.6	11.5
0.2*21C	40/0.08CU+2/0.1steel		169.95	10.6	11.5
0.2*22C	40/0.08CU+2/0.1steel		174.94	10.6	11.5
0.2*23C	40/0.08CU+2/0.1steel		189.75	11.5	12.5
0.2*24C	40/0.08CU+2/0.1steel		194.73	11.5	12.5

0.25*2C	50	0.08	29.73	4.9	5.3
0.25*3C	50	0.08	36.47	5.1	5.5
0.25*4C	50	0.08	44.18	5.5	5.9
0.25*5C	50	0.08	52.22	5.9	6.3
0.25*6C	50	0.08	60.5	6.3	6.8
0.25*7C	50	0.08	68.9	6.7	7.2
0.25*8C	50	0.08	78.46	7.3	7.8
0.25*9C	50	0.08	87.14	7.8	8.3
0.25*10C	50	0.08	95.48	8.1	8.7
0.25*11C	50	0.08	108.91	9.1	9.9
0.25*12C	50	0.08	114.35	9.1	9.9
0.25*13C	50	0.08	119.8	9.1	9.9
0.25*14C	50	0.08	132.6	10.0	11.0
0.25*15C	50	0.08	138.05	10.0	11.0
0.25*16C	50	0.08	143.64	10.0	11.0
0.25*17C	50	0.08	157.14	10.9	11.9
0.25*18C	50	0.08	162.59	10.9	11.9
0.25*19C	50	0.08	168.03	10.9	11.9
0.25*20C	50	0.08	174.21	10.9	11.9

0.3*2C	60	0.08	33.13	5.0	5.5
0.3*3C	60	0.08	40.95	5.2	5.7
0.3*4C	60	0.08	49.87	5.6	6.1
0.3*5C	60	0.08	59.16	6.0	6.5
0.3*6C	60	0.08	68.74	6.5	7.0
0.3*7C	60	0.08	78.46	6.9	7.4
0.3*8C	60	0.08	89.51	7.5	8.0
0.3*9C	60	0.08	99.55	8.0	8.6
0.3*10C	60	0.08	109.22	8.4	9.0
0.3*11C	60	0.08	124.72	9.4	10.0
0.3*12C	60	0.08	131.08	9.4	10.0
0.3*13C	60	0.08	137.45	9.4	10.0
0.3*14C	60	0.08	152.26	10.3	11.1
0.3*15C	60	0.08	158.62	10.3	11.1
0.3*16C	60	0.08	167.66	10.3	11.1
0.3*17C	60	0.08	180.79	11.2	12.1
0.3*18C	60	0.08	187.15	11.2	12.1
0.3*19C	60	0.08	193.52	11.2	12.1
0.3*20C	60	0.08	200.72	11.3	12.2

0.34*2C	68	0.08	33.8	5.2	5.5
0.34*3C	68	0.08	42	5.5	5.8
0.34*4C	68	0.08	53.3	6.1	6.4
0.34*5C	68	0.08	60.8	6.4	6.7
0.34*6C	68	0.08	70.8	6.9	7.2
0.34*7C	68	0.08	80.8	7.4	7.7
0.34*8C	68	0.08	92.2	8.0	8.3
0.34*9C	68	0.08	102.6	8.5	8.8
0.34*10C	68	0.08	112.6	9.0	9.3
0.34*11C	68	0.08	128.4	10.1	10.7
0.34*12C	68	0.08	135.1	10.1	10.7
0.34*13C	68	0.08	141.8	10.1	10.7
0.34*14C	68	0.08	157	11.1	11.7
0.34*15C	68	0.08	163.7	11.1	11.7
0.34*16C	68	0.08	173	11.1	11.7
0.34*17C	68	0.08	186.5	12.1	12.7
0.34*18C	68	0.08	193.2	12.1	12.7
0.34*19C	68	0.08	199.9	12.1	12.7
0.34*20C	68	0.08	207.5	12.2	12.8
